TLDH-87RG-930-Q

Turbo Light Duo; Red/Green Continuous Ultra Bright Output Indicator; Panel Mount Case and Quick Connect Blades with Quick Connect Blades Termination

$48.91

Pricing

QuantityPrice
1-9$48.91 ea.
Get quote for quantities
larger than 10

More Information

Spec Sheet

UL Recognized

Rohs Compliant


Revision 10.24

Specifications

MountingPanel Mount
ColorMultiple Color
Operating Mode
Operating Voltage9-30 Vdc
Typical Operating Current145 mA at 9 Vdc
50 mA at 30 Vdc
Typical Brightness2000 cd/m^2, at 9 Vdc at 25°C
9000 cd/m^2, at 30 Vdc at 25°C
TerminationQuick Connect Blades
Termination StrengthPull test with a maximum of 22 pounds (10 kg) load
Operating Temperature-40_C to +85_C
Storage Temperature-40_C to +100_C
Surge Voltage20% over maximum rated voltage for less than 5 minutes
Reverse Voltage ProtectionTo the maximum operating voltage
Construction MaterialsLens/Case- White Translucent Polycarbonate 94 VO
Potting- 2 parts epoxy resin or silicone, black
GasketGasket (Included) 0.125" thick, 60 Durometer Neoprene
Construction MaterialsASTM B117 Certified - Withstands exposure to salt spray for 300 hours
IP 68 Certified - Withstands water submergence and dust exposure
Humidity- 95% relative humidity at +40_C continuously for 100 hours.
Vibration- Withstands vibration between 0 and 55 Hz. on all axes.
Life Expectancy17 years under normal operating conditions.
WarrantyFor a period of two years from the date of manufacture under normal operating conditions.
NotesThis product is not intended as a life safety device.
Terms and Conditions of SaleLink here

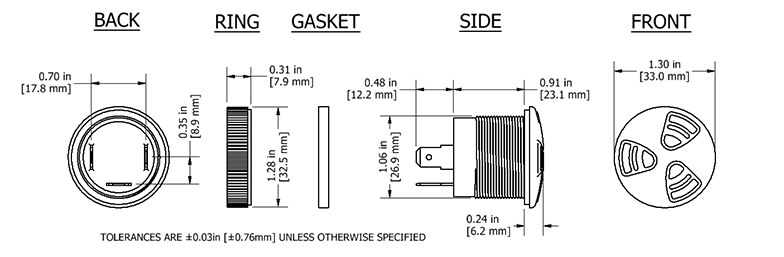

Dimensions

Schematic

Panel Hole

Termination

Dimensions

×
Schematic
Panel Hole
Termination
