TCAN-98B-930-H

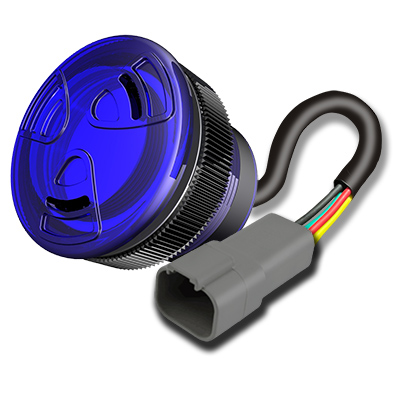

Lighted CAN Alarm - CAN Alarm J1939-15; Large Panel Mount and Deutsch Connector Termination. BLUE Glowing Panel mount piezo alarm with LED that functions on the any CAN Network using the SAE J1939-15 protocol. It is arbitrary address capable, meaning it can claim a different address if an address conflict occurs. Rather than being "pre-canned" with specific sounds, the device is configurable for many sounds or tones via messages received on the network. This allows the alarm to be useful to communicate multiple audible tones/sounds for different alarm conditions. A detailed Communications Reference specifies tone types and specific PGN instructions for activating different tone and sound combinations on the network.

$185.83

Pricing

QuantityPrice
1-9$185.83 ea.
Get quote for quantities
larger than 10

More Information

Spec Sheet

Support Documentation

Rohs Compliant

CE Compliant


Revision 03.24

Specifications

MountingPanel Mount
Operating ModeExtra Loud Multiple Tone
Operating Voltage9-30 Vdc
Operating Frequency1800±200 Hz
Typical Operating Current30 mA at 9 Vdc
50 mA at 30 Vdc
Typical Sound Pressure60 ±5 dB(A) at 9 Vdc at 24 inches (61 cm), at 25°C
108 ±5 dB(A) at 30 Vdc at 24 inches (61 cm), at 25°C
TerminationDeutsch DT04-4P (gold terminals)
Termination StrengthPull test with a maximum of 22 pounds (10 kg) load
Operating Temperature-20_C to +65_C
Storage Temperature-40_C to +85_C
Surge Voltage20% over maximum rated voltage for less than 5 minutes
Reverse Voltage ProtectionTo the maximum operating voltage
Construction MaterialsCase- Plastic _NORYL_ N-190, Flame Retardant UL 94-VO, Black
Internal Circuit- Audio-oscillator and piezoelectric driver
Potting- 2 parts epoxy resin or silicone, black
Diaphragm- Stainless Steel 304
GasketGasket 0.062" thick, 60 Durometer Neoprene
Construction MaterialsASTM B117 Certified - Withstands exposure to salt spray for 300 hours
IP 68 Certified - Withstands water submergence and dust exposure
Humidity- 95% relative humidity at +40_C continuously for 100 hours.
Vibration- Withstands vibration between 0 and 55 Hz. on all axes.
Life Expectancy10 years under normal operating conditions.
WarrantyFor a period of two years from the date of manufacture under normal operating conditions.
NotesThis product is not intended as a life safety device.
Terms and Conditions of SaleLink here

Dimensions

Schematic

Panel Hole

Dimensions

×
Schematic
Panel Hole
