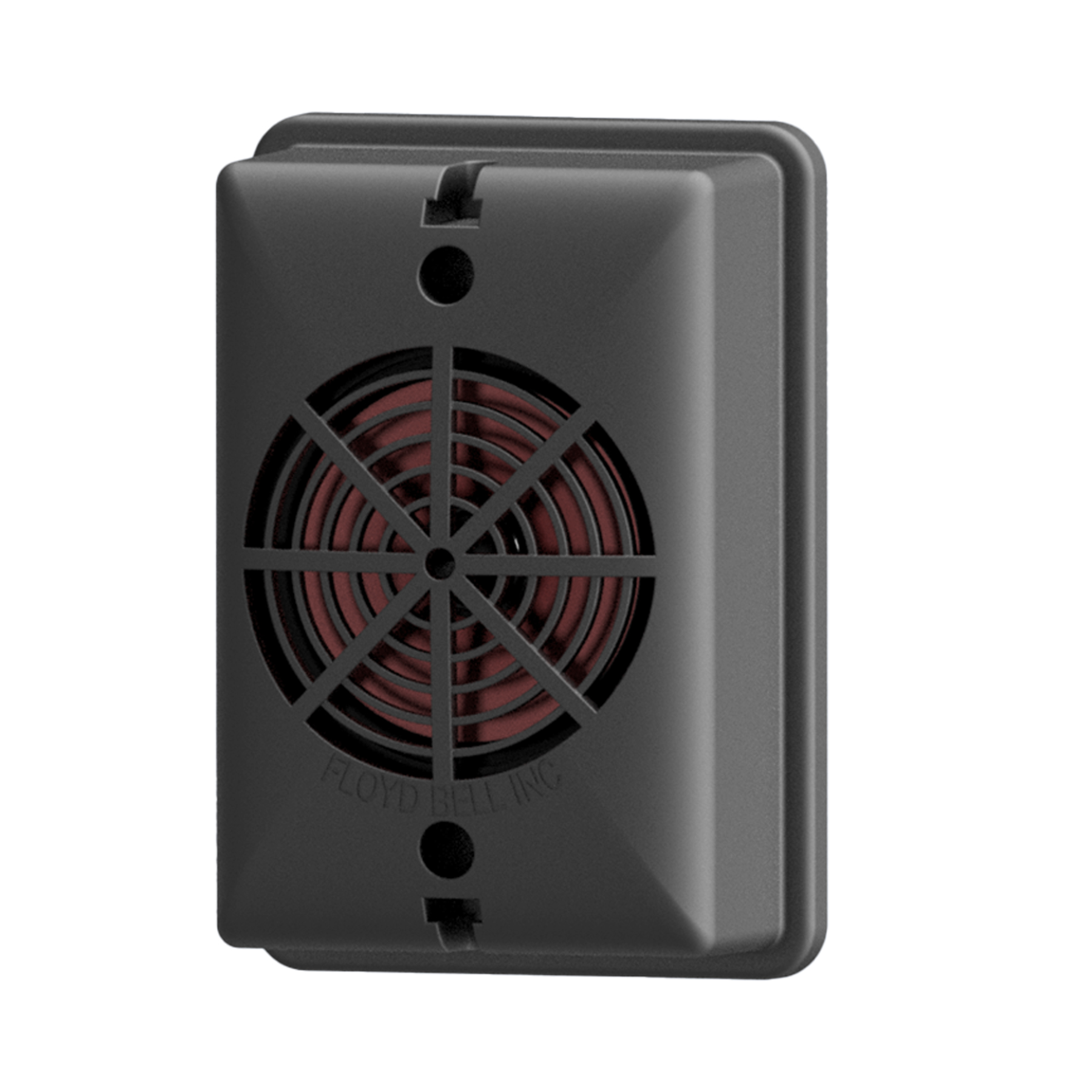

AN200W_16VUSB

The AN200 is a small, lightweight but powerful industrial announcement system for playing pre-recorded voice and audio messages. The AN200W_16VUSB can play back up to 6 minutes of (16bit x 44.1Khz) high-output audio via 16MB memory. The audio can be divided into 16 separate message locations. Each message is user selectable via input logic into the system. The sound level can be user-adjusted via potentiometer. The AN200 provides an excellent solution for any announcement need such as voice instructions, industrial warnings, sound effects, loud sirens or other tones. AN200 is well-suited for applications where loud, clear voice and sound effects are necessary. Key Features: AN200W_16VUSB: simple Windows PC USB connectivity that allows users to easily load and change messages whenever necessary. See support documentation for details on recording, loading and playing back messages. The unit is sized to fit any standard handy box or electrical box, but an accessory kit is available for bracket mounting.

$253.38

Pricing

QuantityPrice
1-9$253.38 ea.
Get quote for quantities
larger than 10

More Information

Spec Sheet

Support Documentation

Rohs Compliant


Revision 04.26

Specifications

MountingBox Mount
Operating Mode Voice Message: 16 Custom Recorded Messages
Operating Voltage9-30 Vdc
Operating Frequency300Hz to 10Khz
Typical Operating Current0 mA at 9 Vdc
250 mA at 30 Vdc
Typical Sound Pressure0 ±5 dB(A) at 9 Vdc at 24 inches (61 cm), at 25°C
105 ±5 dB(A) at 30 Vdc at 24 inches (61 cm), at 25°C
TerminationWires
Operating Temperature-20_C to +65_C
Storage Temperature-40_C to +85_C
Surge Voltage20% over maximum rated voltage for less than 5 minutes
Reverse Voltage ProtectionTo the maximum operating voltage
Construction MaterialsPlastic _NORYL_ N-190, Flame Retardant UL 94-VO, Black
Construction MaterialsAN200 is designed for wet and damp environments and meets an IP65 rating.
Life Expectancy10 years under normal operating conditions.
WarrantyFor a period of one year from the date of manufacture under normal operating conditions.
NotesThis product is not intended as a life safety device.
Terms and Conditions of SaleLink here

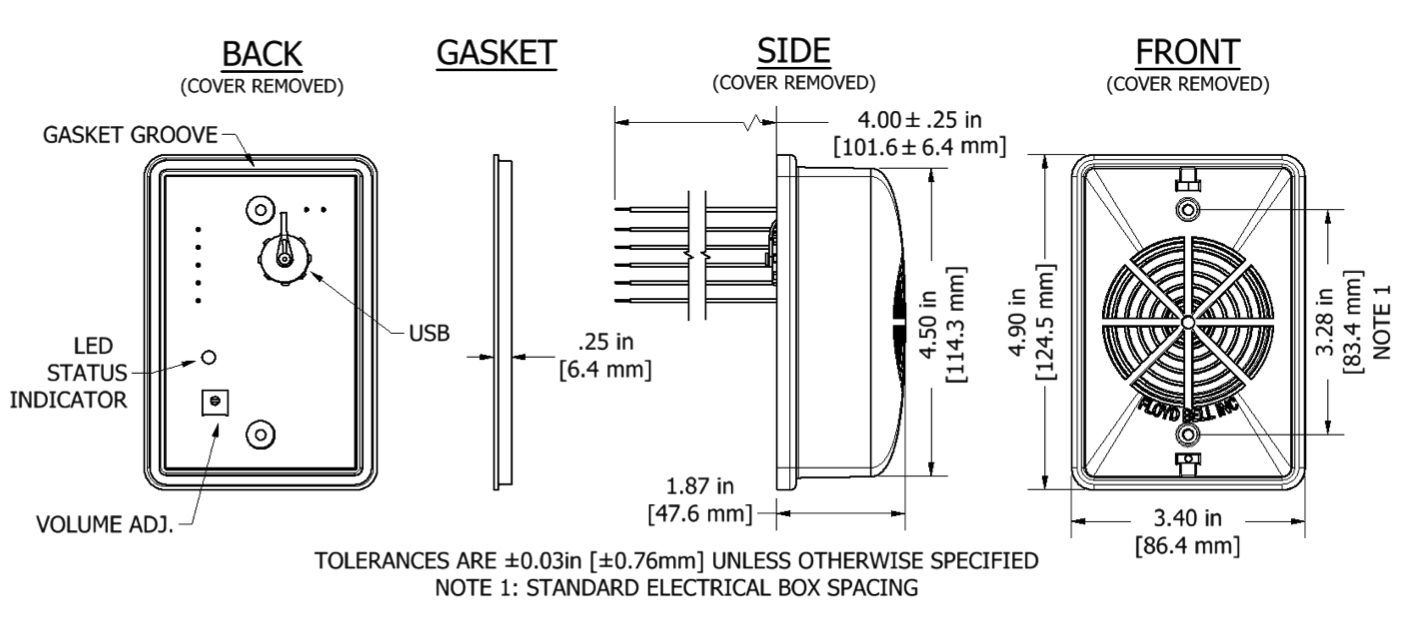

Dimensions

Schematic

Dimensions

×
Schematic
